PRODUCT

PIVOTING

Meeting requirements and unifying the aesthetic of your project.

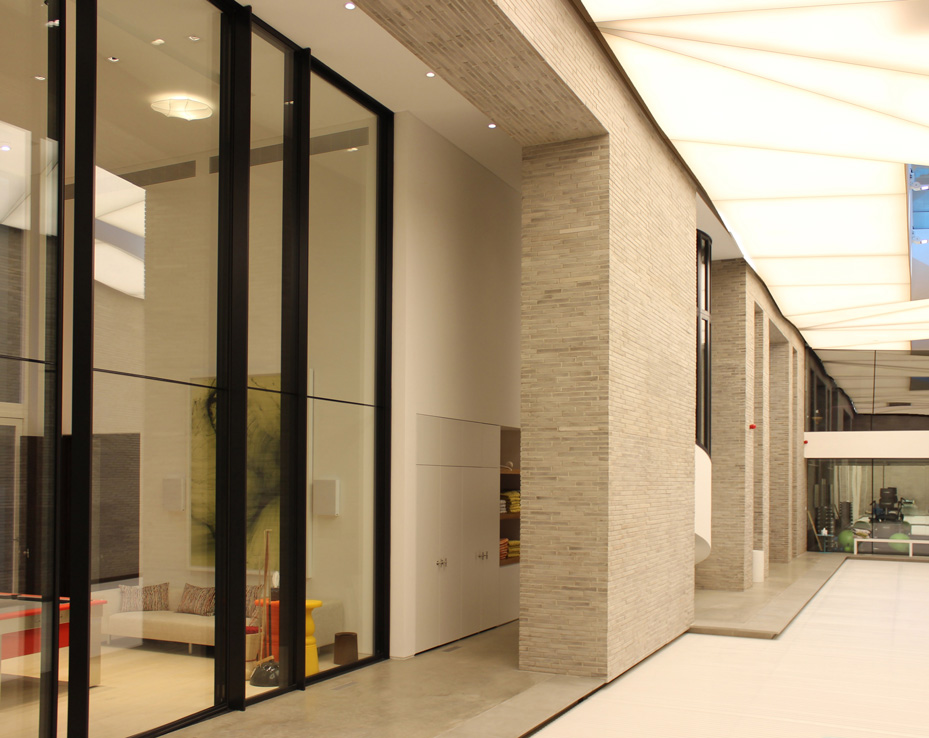

The pivoting system opens vertically on a right, left or central pivot. The structure is anodised 25 micron aluminium alloy, in a natural colour finish. As an option, the thermolacquered or anodised versions are available in an infinite choice of colours. Locking and sealing is assured by a mobile rack blade or cylinder with key.

The Original Minimalist Window: Pivoting System by Vitrocsa
The Original Minimalist Window: Pivoting System by Vitrocsa

PRODUCT

PIVOTING

Meeting requirements and unifying the aesthetic of your project.

The pivoting system opens vertically on a right, left or central pivot. The structure is anodised 25 micron aluminium alloy, in a natural colour finish. As an option, the thermolacquered or anodised versions are available in an infinite choice of colours. Locking and sealing is assured by a mobile rack blade or cylinder with key.

COMPLETED PROJECTS

HOUSE IN VEYRIER-DU- LAC

Vitrocsa TH+ pivoting

RESIDENCE IN PORTO HÉLI

Vitrocsa TH+ pivoting

PAVELO

Vitrocsa TH+ pivoting

FAIRLIGHT

Vitrocsa TH+ pivoting

  • HOUSE IN VEYRIER-DU- LAC

    Architect

    Rémi Tessier

    Photographer

    Didier Jourdan

    Partner

    Vitrocsa Headquarters

  • RESIDENCE IN PORTO HÉLI

    Architect

    Alexandros Samaras & Associates, Legorreta + Legorreta

    Photographer

    Yiannis Kontos

    Partner

    Sias SA

  • PAVELO

    Architect

    Des Harvey

    Photographer

    Maheen Chaudhry

    Partner

    Vitrocsa UK Ltd

  • FAIRLIGHT

    Architect

    Marston Architects

    Photographer

    Katherine Lu

    Partner

    Vitrocsa Australia

RANGES

The Vitrocsa pivoting system is available in several ranges, adapted to the installation conditions of your projects.

RANGES

The Vitrocsa pivoting system is available
in several ranges, adapted to the
installation conditions of your projects.

Thermal insulation and large surface areas

Available in 32 or 44 mm double or triple glazed versions, the Vitrocsa TH+ range is for sliding window surfaces of up to 18 m2, with scope for larger panes, depending on the supplier of the glass.

The excellent insulating properties of the profiles, in combination with the glass, enable current low energy consumption standards to be met.

Configuration

  • Standard sliding frame (up to 18 m2, or more)
  • Sliding invisible frame (up to 18 m2, or more)
  • Curved (sliding: minimum radius of 3 m; fixed: minimum diameter of 1.5 m)
  • Pivoting (up to 12 m2)
  • Guillotine (up to 500 kg per pane)
  • Turnable Corner (up to 250 kg per pane, 6 m2)
  • Fixed (up to 18 m2, or more)
  • Opening angle
  • Pocket
  • Motorisation
  • Mosquito net

Technical details

  • Rail + Frames
    Available in 32 or 44 mm double or triple glazed versions, the Vitrocsa TH+ range is for sliding window surfaces of up to 18 m2, with scope for larger panes, depending on the supplier of the glass.
    The excellent insulating properties of the profiles, in combination with the glass, enable current low energy consumption standards to be met.
  • Vertical connection
    22 mm
    Reinforced for very windy locations or installation at high altitudes
  • Closure mechanism

    One-point closure button (029, 035, 055)

    Two-point closure button (092)

    Three-point closure button

    Cylinder

    Range of options for electric closure

    Alarms

  • Glazing

    32 mm or 44 mm

    Panel size up to 18 m2 (6 x 3.21 m), with scope for larger panes, depending on the supplier of the glass, vertical or horizontal

Flagship range

The Vitrocsa 3001 range allows for sliding window surfaces of up to 6 m² with 26 mm double glazing.

The first Vitrocsa 3001 window was developed at the start of the 1990s. With the experience we now have, we can guarantee that this system presents no hidden defects.

The roller mechanism and sealing system work perfectly, provided that the window has been assembled in line with good industry practices.

Configuration

  • Standard sliding (up to 6 m2)
  • Pivoting (up to 6 m2)
  • Guillotine (up to 6 m2)
  • Fixed (up to 9 m2)
  • Opening angle
  • Pocket
  • Mosquito net

Technical details

  • Rail + Frames

    Embedded and concealed in the floor, wall and ceiling

    Rails just 99.5 mm wide for a birail (mono : 45 mm + 9.5 mm seal)

    Saline treatment specially adapted for coastal projects

  • Vertical connection
    18.5 mm
    Reinforced for very windy locations or installation at high altitudes
  • Closure mechanism

    One-point closure button (029, 035, 055)

    Cylinder

    Range of options for electric closure

    Alarms

  • Glazing

    26 mm

    Panel size up to 6 m2

Infinite surface

The Vitrocsa V56 range allows infinite glazing surfaces using 56 mm thick double or triple glazing. The V56 range is an evolution of our current sliding window systems.

The Vitrocsa V56 window has been developed to keep the same mechanical characteristics of the Vitrocsa systems which have been proving their worth for over 25 years.

Configuration

  • Standard sliding
  • Pocket
  • Opening angle

Technical details

  • Rail + Frames

    Embedded and concealed in the floor, wall and ceiling

    Saline treatment specially adapted for coastal projects

  • Vertical connection

    22 mm

    Reinforced for very windy locations or installation at high altitudes

Vitrocsa Technical Brochure for your Minimalist Window Project

OUR TECHNICAL BROCHURE

Discover the technical details by downloading the Vitrocsa technical brochure.

Download

OPTIONS

A range of safety and security equipment is available as an option:

OPTIONS

A range of safety and security equipment is available as an option:

It is essential for us to meet the requirements and expectations of our clients by offering them the highest level of safety. Our product meets the highest standards such as RC2. Various additional components are available to meet other safety requirements:

  • Alarm directly integrated into our system
  • Control of the closed leaf position
  • Glass breakage detector
  • Special burglary-resistant glass
