V56
Infinite Surface with High Technical and Thermal Performance
Custom Minimalist Sliding Windows and Glass Doors
Sliding
By virtually erasing the boundary between inside and outside, the Vitrocsa Sliding window system enables architecture to embrace its surroundings, creating uninterrupted panoramas and a transformative living experience grounded in Swiss engineering excellence.
Technical Brochure
Key Features

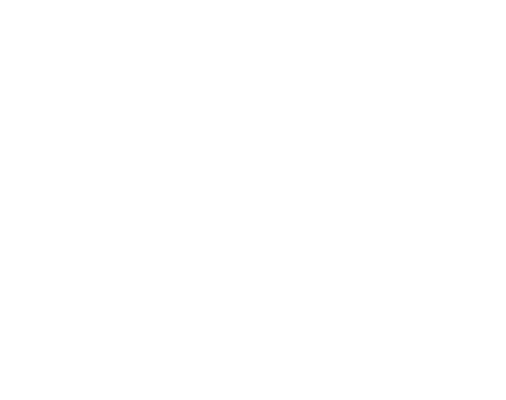

Invisible Frame With One or Two Tracks
This configuration removes the architectural threshold between interior and exterior entirely. The frame is concealed beneath the finished floor, leaving only the glass visible. Double or triple glazing from 32 to 56 mm supports large sliding panels with surfaces of up to 20 m², creating a continuous visual and spatial connection.

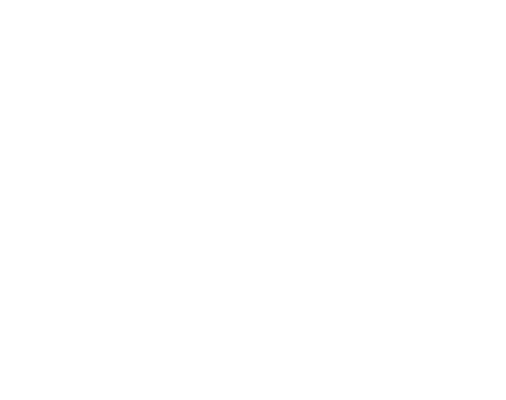

Window Panels Pocket
The pocket solution allows one or more sliding panels to disappear completely into a dedicated wall cavity. When open, the glass leaves no visual presence, freeing the full width of the opening. This approach reinforces architectural purity while delivering a fully open façade without compromising the clean alignment of walls and finishes.

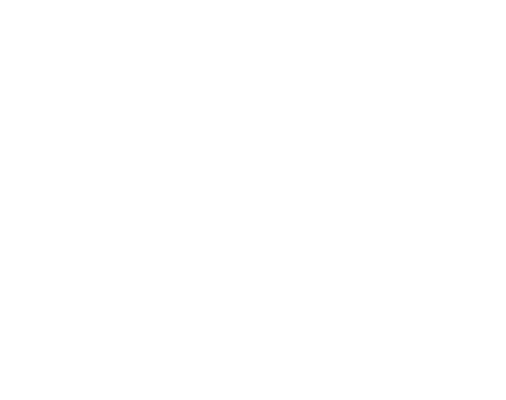

Open Angle
The open angle solution eliminates the corner jamb, allowing two sliding façades to meet without a vertical interruption. All rail configurations are possible, enabling full corner openings with uninterrupted views. This system enhances spatial flow and reinforces the sense of openness by removing structural visual barriers at the corner.
Mosquito Net
Several discreet solutions address insect protection without affecting the minimalist appearance of the system. An additional rail integrates a mosquito net directly into the sliding configuration, or a folding canvas is concealed within the vertical jamb. Coverage of up to 80 cm is achieved while preserving clean lines and ease of use.

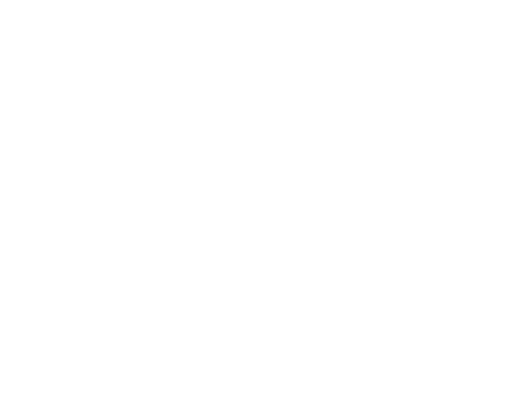

Sliding Window Range
To meet diverse project requirements, the Vitrocsa Sliding window system is offered in several ranges. These include the high-performance V56 series for expansive, thermally insulated panels, the TH+ series for enhanced thermal insulation on large surfaces, the V32 series featuring a slimmer profile for moderate climates, and the 3001 series ideal for warm climates.
Sliding Comparison Table
Below is a comparative overview of the Sliding glass window system’s available ranges, highlighting key specifications and capabilities of each.
| WINDOW TYPE | V56 | TH+ | V32 | 3001 |
|---|---|---|---|---|
| Connection Thickness | 24.8 mm | 22 mm | 24 mm | 18 mm |
| Panel Size | < 20 m2 | < 20 m2 | Up to 12 m2 | Up to 6 m2 |
| Glass Thickness | 56 mm | 32 to 44 mm | 32 mm | 12 to 26 mm |
| Motorisation | - | - | ||
| Lock Mechanism | ||||
| Alarms | ||||
| RC2 Option | - | - | - | |
| Open Angle | ||||
| Mosquito Net | - | |||
| Finishes | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. |
Sliding Window and Glass Door Projects
Hale Lana House, designed by Olson Kundig, unfolds as a series of floating pavilions connected by terraces and elevated gardens. At the heart of this residential experience are the Vitrocsa Sliding Windows.
The Flag House, designed by Studio MK27, is a perfect harmony between architecture and nature. The house is designed as a large glass box, opening up the interiors to the surrounding nature.
The Fondation Maeght inaugurated an extension designed by architect Silvio d’Ascia, blending respect for the original architecture with contemporary innovations

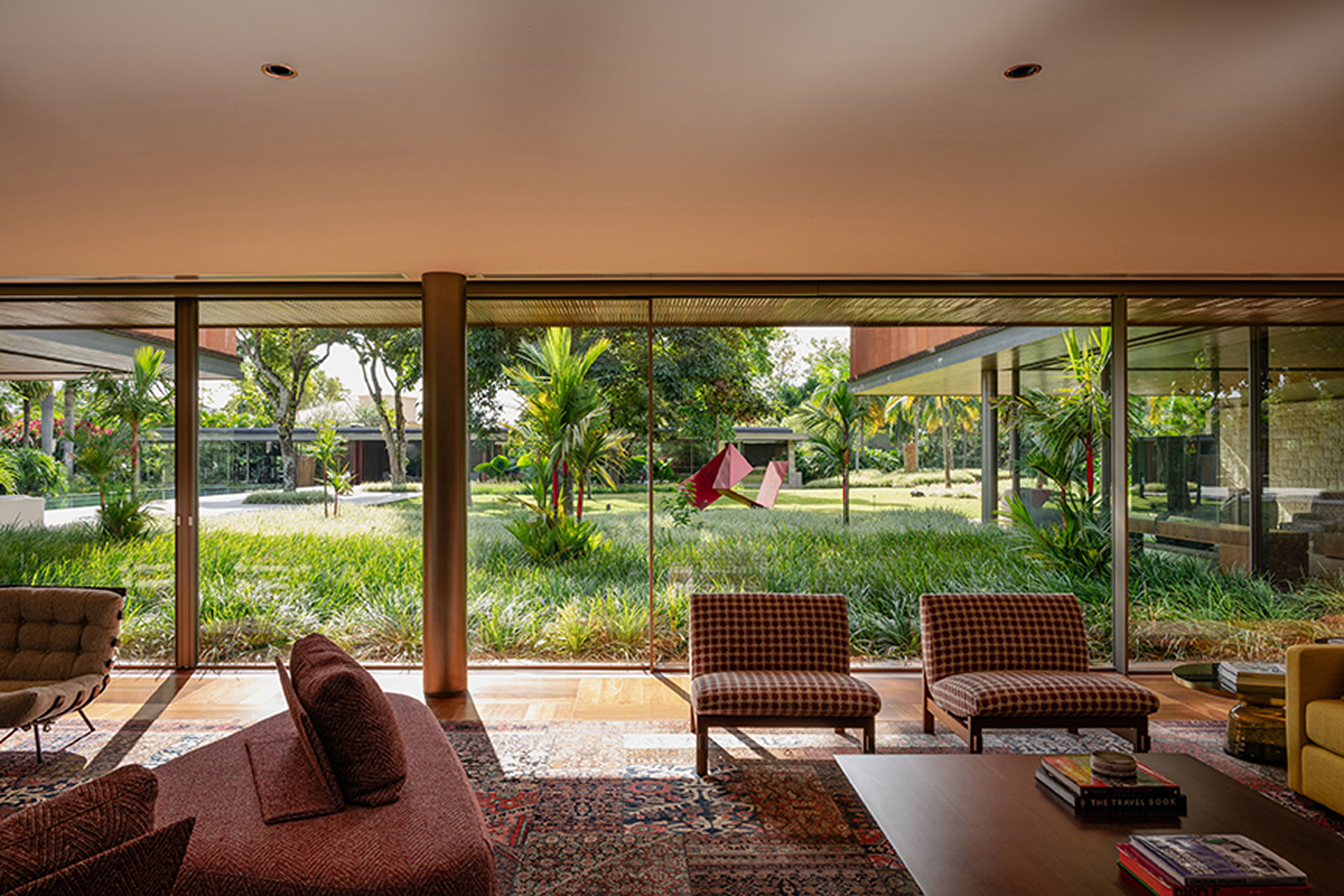

Nestled in the lush setting of the Green Golf Development in São Paulo, this project by Bernardes Arquitetura applies Vitrocsa’s sliding window system.
