V56
Infinite Surface – High Technical and Thermal Performance
Custom Large Pivoting Windows and Glass Doors
Pivoting

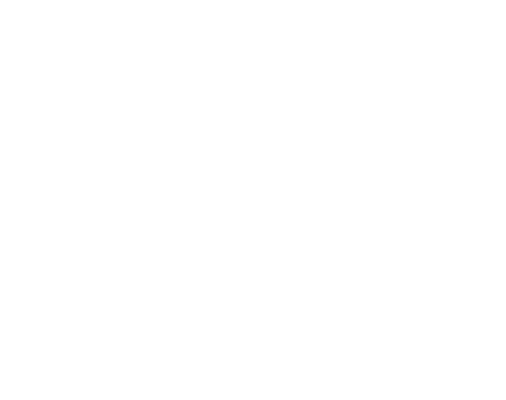

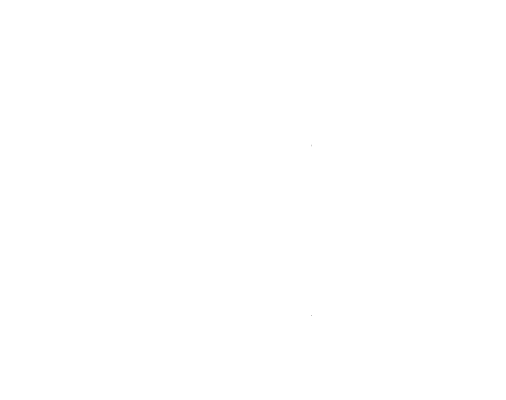

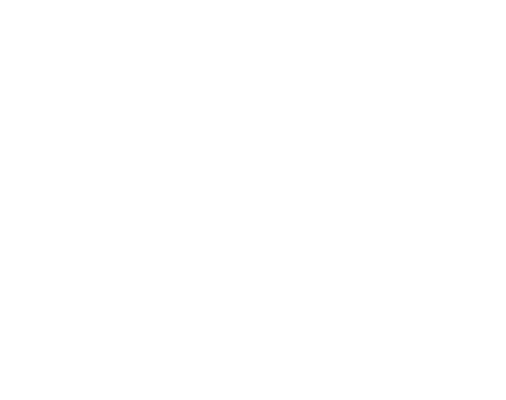

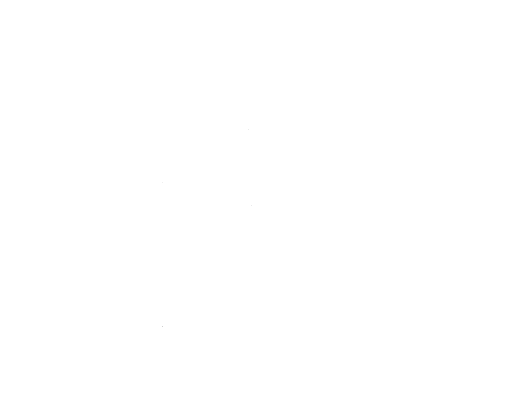

The Vitrocsa Pivoting window and glass door system redefines the possibilities for vertical openings, offering a dramatic alternative to traditional hinged doors or windows. Opening on a central or offset vertical pivot, these monumental glass panels rotate with breathtaking ease.
Technical Brochure
Key Features
Spectacular Scale
The pivoting glass panels achieve exceptional dimensions – up to 12 m² surface area each – without heavy framing. A single pivot glass door can dramatically fill a space from floor to ceiling.
Minimalist Aesthetics
True to Vitrocsa’s ethos, the Pivoting system minimizes visual intrusions. The pivot hardware is mostly hidden, and the surrounding frame remains slender and flush.
Indoor-Outdoor Unity
A pivoting opening creates a unique spatial experience – when open, it forms a generous passage that aligns floor and ceiling continuously to the outside.
Precision Pivot Hardware
Drawing on Swiss micromechanics, the system uses patented pivot axes and high-performance bearings to ensure effortless operation.
The Pivoting Window Range
By having Pivoting variants in V56, TH+, and 3001, Vitrocsa ensures that architects have full flexibility: you can integrate a pivot window into virtually any design context, from extreme cold to tropical heat, all while preserving the same refined appearance and smooth operation.
Pivoting Comparison Table
| WINDOW TYPE | V56 | TH+ | V32 | 3001 |
|---|---|---|---|---|
| Connection Thickness | 25 mm | 22 mm | - | 18.5 mm |
| Panel Size | Up to 12 m² | Up to 12 m² | - | Up to 3 m² |
| Glass Thickness | 56 mm | 32 to 44 mm | - | 12 to 26 mm |
| Weight | 600 Kg | 600 Kg | - | - |
| Lock Mechanism | - | |||
| Finishes | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | - | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. |
Pivoting Window System Projects

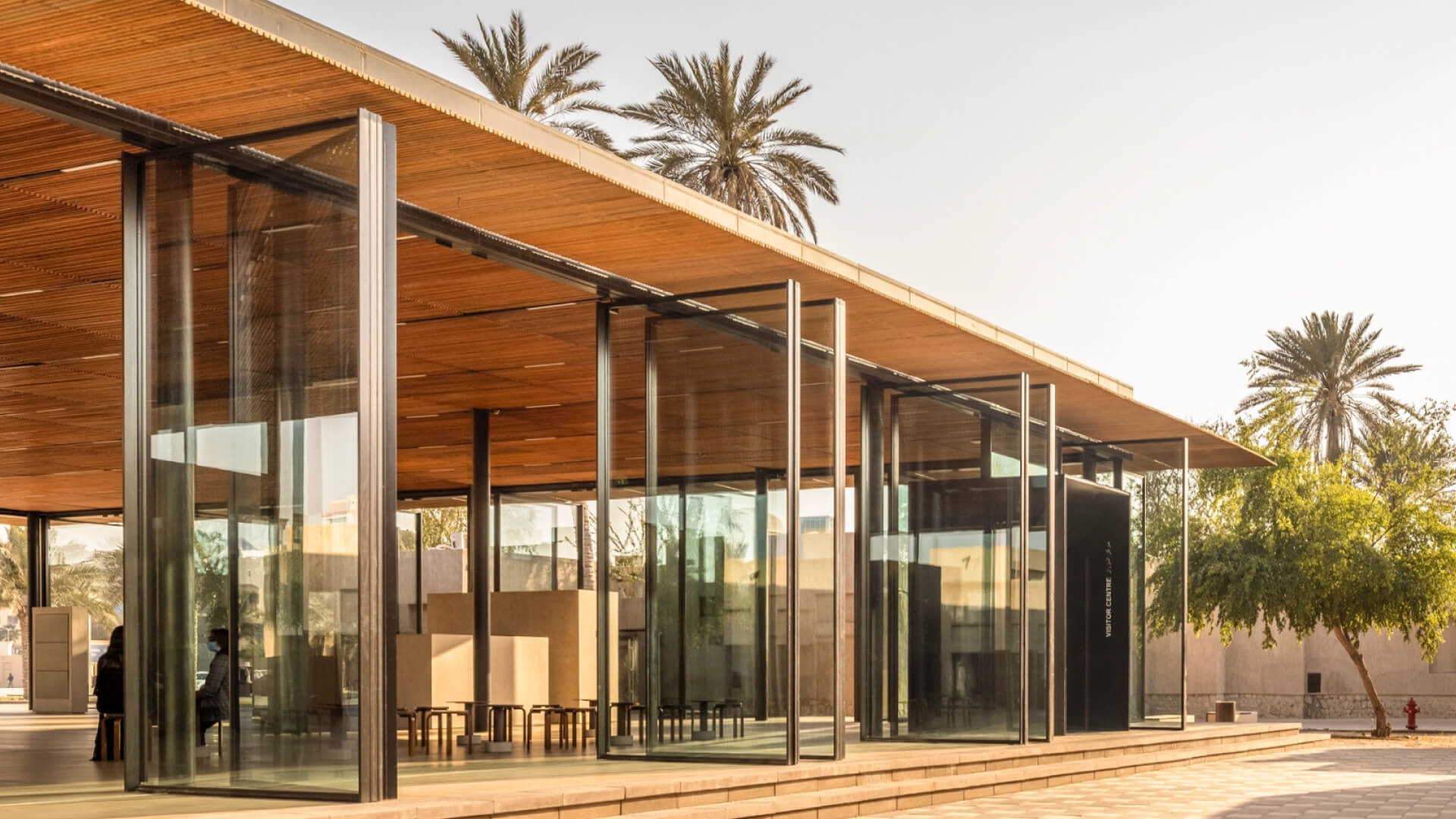

The Shindagha Welcome Pavilion is located in the Shindagha Historic District in Dubai includes 41 Pivoting Windows, each measuring 4.30 m in height and 2.2 m in width

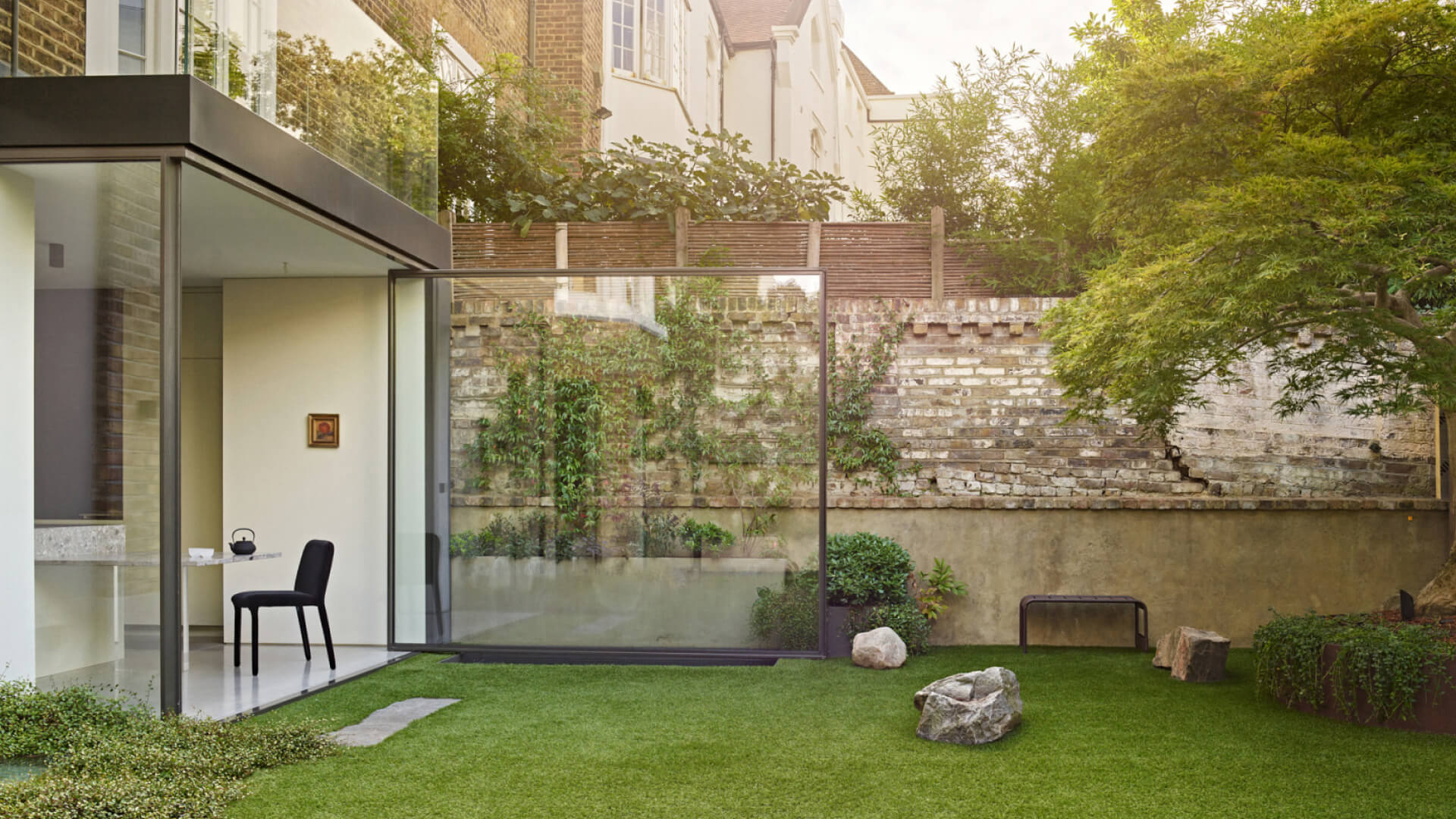

The Aubrey Road project is a stunning realization located in London and features a majestic Vitrocsa Pivoting window measuring 3.2 x 2.8 meters, which opens directly onto the garden.
This Framed House project by Luis Gomez-Siu Design Studio is located in the Sydney district of Vaucluse and features 4 Vitrocsa pivoting windows.
The Daddy Cool residential project in the inner Sydney suburb of Paddington, is organized around a central courtyard, extended by a Vitrocsa Pivoting Window.
