V56 - Two Lines
Infinite Surface – High Technical and Thermal Performance
Custom Frameless Windows and Glass Doors
Invisible Frame
The Vitrocsa invisible frame system removes the barrier between indoors and outdoors. Our patented technology is a feet of engineering which combines flexibility, simplicity and quality. This system is available in a range of options, with one or several tracks, to meet the latest requirements.
Technical Brochure
Key Features
Un Obstructed Sightlines
In this system, the window frame is fully embedded under the floor, in the ceiling and walls allowing a pure glass wall with no visible vertical mullions or thresholds. Indoor and outdoor spaces blend together, enhancing views and design continuity like never before.

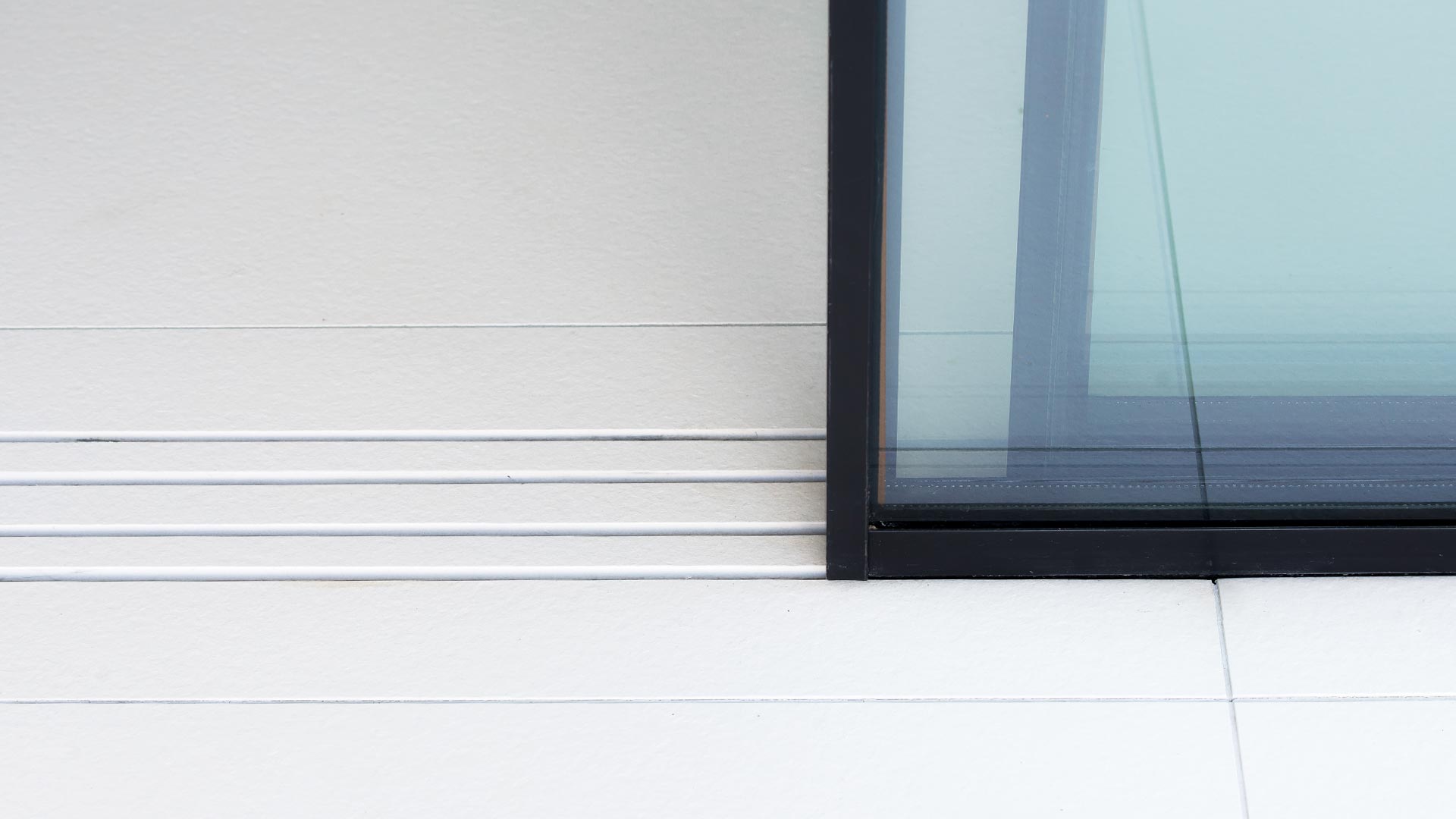

Flush Floor Integration

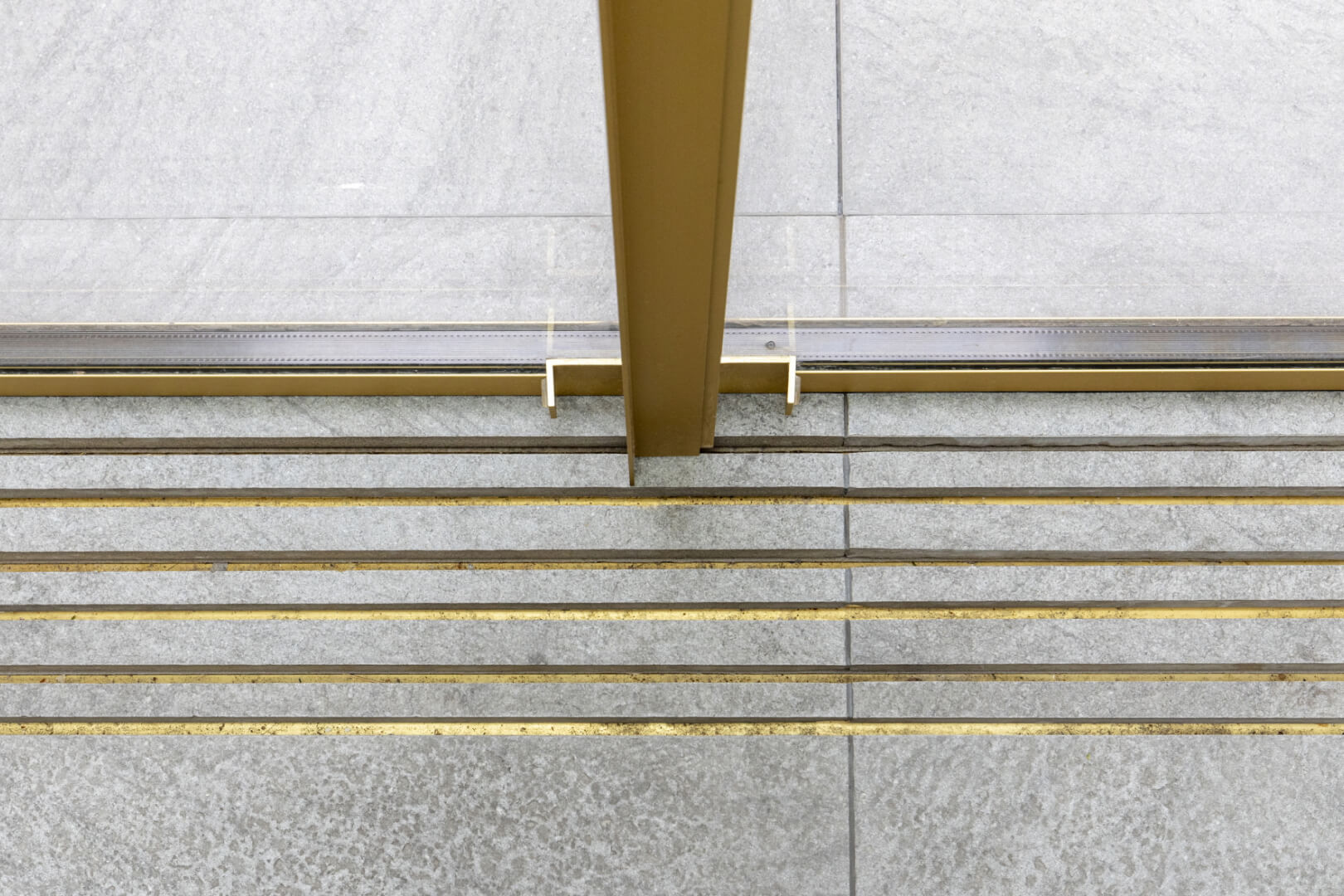

With the track concealed beneath the floor finish, there is no raised threshold whatsoever This not only looks immaculate, but also provides unobstructed passage. Ideal for seamless indoor-outdoor living and improved accessibility.
Weather-Sealed
The Invisible Frame is fully thermally insulated and weather-sealed, matching the performance of our other systems even in demanding climates. Drainage and maintenance are ingeniously managed out of sight, so you gain ultimate minimalism.
Single-track or Multi-track

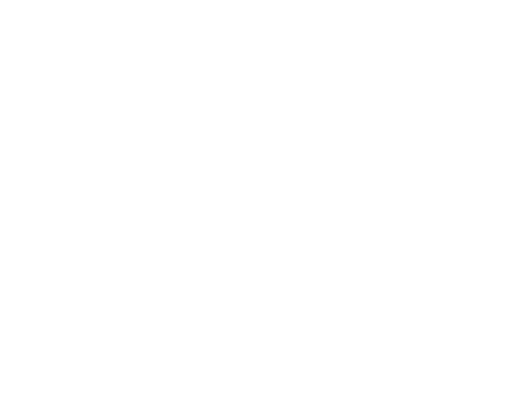

Available in single-track or multi-track setups, the Invisible Frame can be tailored to any opening size. It is compatible with Vitrocsa’s core ranges (V56, TH+, V32) and is even integrated by default into our Turnable Corner system, extending the invisible aesthetic to open-corner designs.
Invisible Window Frame Range
Invisible Frame Comparison Table
| WINDOW TYPE | V56 | TH+ | V32 | 3001 |
|---|---|---|---|---|
| Two lines | - | - | ||
| One line | - | - | - | |
| Connection Thickness | 22 mm | 22 mm | 23 mm | - |
| Panel Size | < 20 m2 | < 20 m2 | Up to 12 m2 | - |
| Glass Thickness | 56 mm | 32 to 42 mm | 32 mm | - |
| Motorisation | - | |||
| Open Angle | - | |||
| Alarms | ||||
| RC2 Options | - | - | - | - |
| - | ||||
| Mosquito Net | - | |||
| Finishes | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | - |
Frameless Window Projects
Château Troplong Mondot restaurant in Saint-Émilion uses a Vitrocsa TH+ Turnable Corner window system to create a fully open terrace and seamless indoor-outdoor experience.

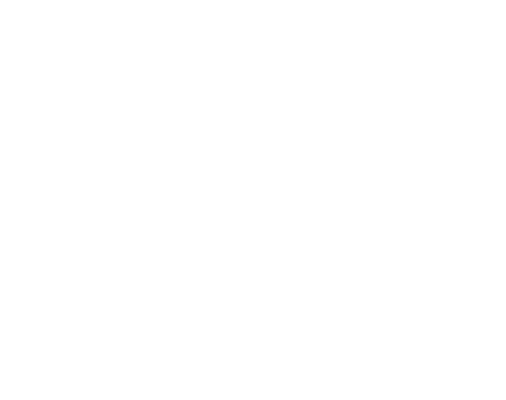

The Barcelona House designed by Ström Architects is a stunning home in the hills near Barcelona. This modern and luxurious project features six Vitrocsa Sliding windows with invisible frame.
