V56
Infinite Surface – High Technical and Thermal Performance
Custom Large Vertically Sliding Windows
Guillotine
Vitrocsa’s Guillotine system is a vertical sliding window solution that enables expansive floor-to-ceiling openings which glide open effortlessly upwards or downwards. Named for its vertical movement with double or triple glazing, the Guillotine system comprises large glass panels that slide past each other (or a counterweight) to open the entire height.
Technical Brochure
Key Features
Vertically Panoramic
The Guillotine design opens up multi-story views and admits light from top to bottom. With no intermediate transoms, you get a continuous glass expanse that, when opened, forms a lofty portal to the outdoors.
Heavyweight Capability
Each moving panel can weigh on the order of 500 to 1000 kg (depending on range) and still function effortlessly The system’s counterbalance mechanism and optional motorization are engineered for reliability under extreme loads.
Multiple Configurations

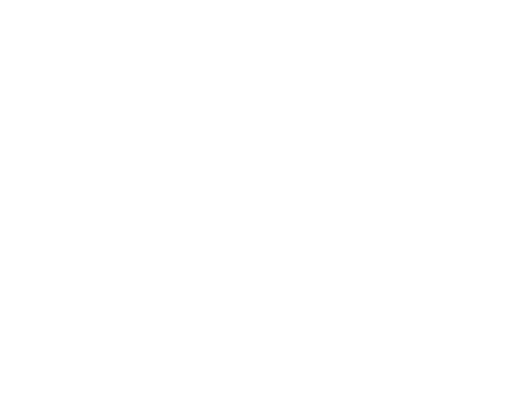

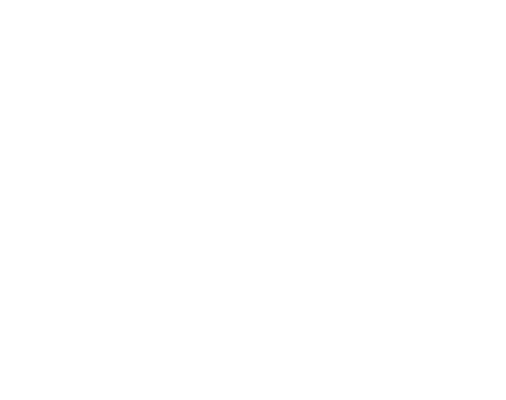

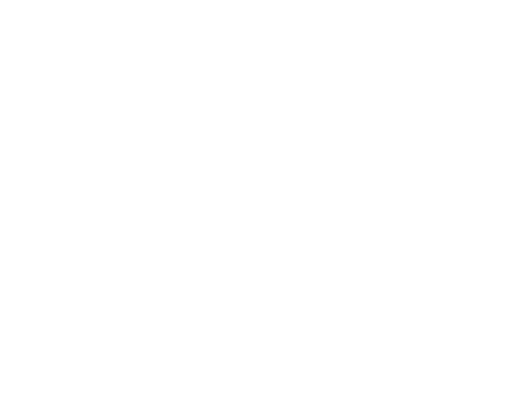

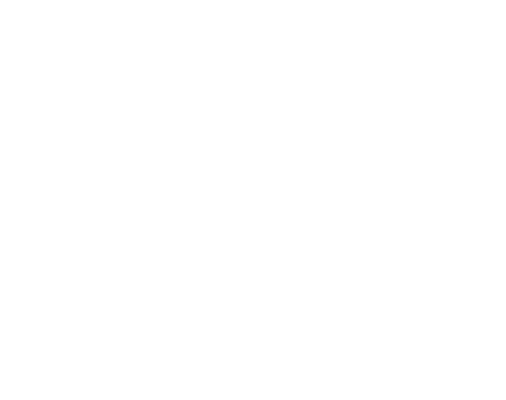

Flexibility is built-in – you can have both panels move (meeting in the middle when closed), or one fixed and one mobile, or even multiple stacked panels for very tall openings.
Safe and Streamlined
Despite the name “guillotine,” safety is paramount: the system includes fail-safes like braking mechanisms and sensors when motorized, preventing sudden drops.
Guillotine Window Range
Vitrocsa’s Guillotine system is offered in multiple ranges to address different technical requirements. In the V56 range, the guillotine can achieve the largest glass panels and highest weight capacity
Guillotine Comparison Table
Below is a comparative overview of the Guillotine window system’s available ranges, highlighting key specifications and capabilities of each.
| WINDOW TYPE | V56 | TH+ | V32 | 3001 |
|---|---|---|---|---|
| Connection Thickness | 25 mm | 22mm | - | 18.5 mm |
| Glass Thickness | 56 mm | 32 to 44 mm | - | 12 to 26 mm |
| Weight | 1000 kg per panel | 500 kg per panel | - | 180 kg per panel |
| Motorisation | - | - | ||
| Lock Mechanism | - | |||
| - | ||||
| Finishes | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | - | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. |
Guillotine Window System Projects
The Grand Park Hotel Rovinj project is characterised by its nine enormous vertically sliding guillotine windows offering spectacular views over the city and Adriatic sea.

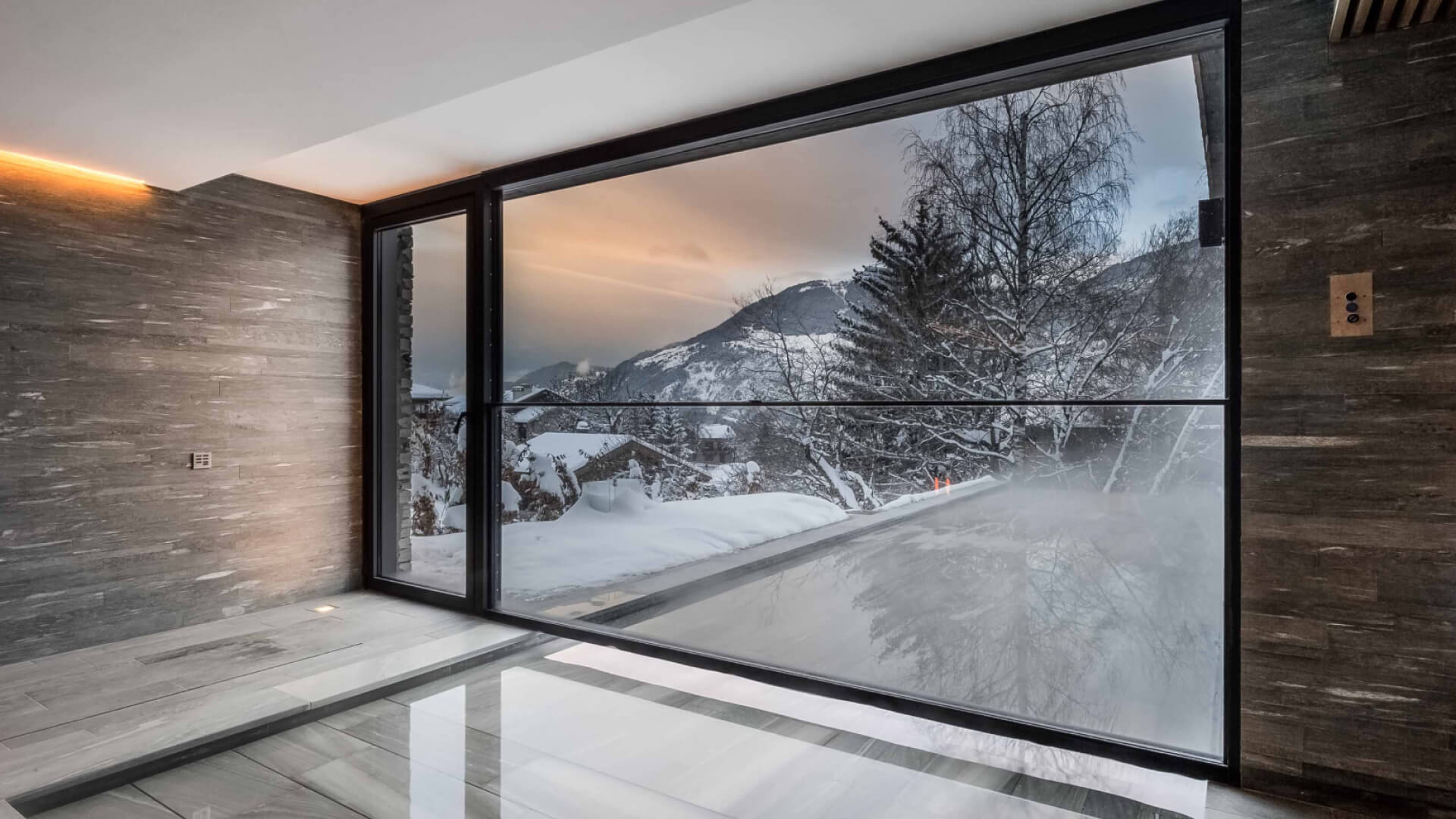

Blossom Hill Chalet by ITAR Architects sits above Courchevel. Vitrocsa's minimalist window systems reduce visual barriers, extend sightlines and strengthen the link between interior and exterior.
